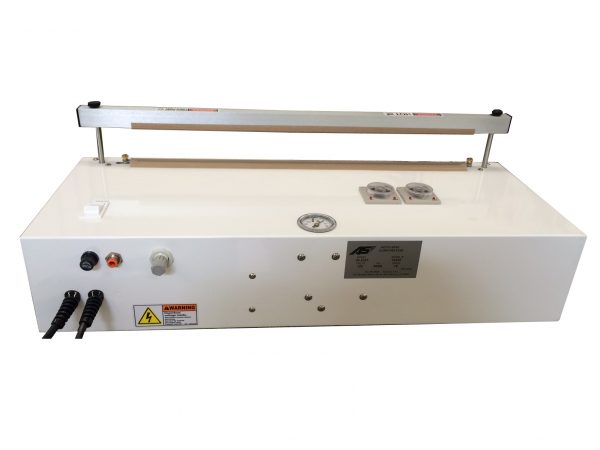

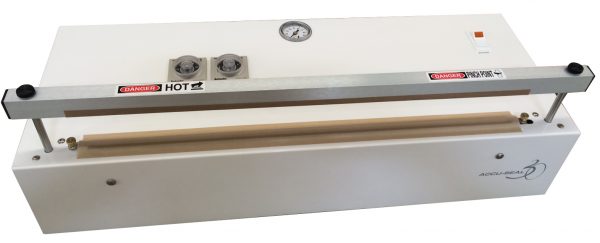

Accu-seal Model 30-232T 20″ Pneumatic Impulse Bag Sealer
Our pneumatic jaw pressure sealer is recognized as one of the best general-purpose bag sealers for users requiring an economical yet reliable impulse sealer. Constructed using powder coated steel and high-quality pneumatic components, the Model 30 is designed to provide years of trouble-free operation.
The design combines performance with value in a machine that can be adjusted for a wide variety of film bag sealing applications. The system is equipped with an electric foot switch that allows a single operator to easily and safely activate the sealing process.
The Model 30 can be relied on to produce a quality seal every time, even when using mil-spec films that demand repeatability and reliability.
Note: An 80psi (1.0cfm) external air supply is required for operation of this product.
Ease of Portability
The ergonomically designed Accu-Seal Model 30-232T can handle your toughest job yet, at 30 lbs, it’s easy to lift. The unit is designed for tabletop operation or, can be mounted on an optional ergonomic stand that allows for multi-positional orientation by the user.
Easy service and reliability. All Consumable parts and repair parts are easily available.
Two-Year Limited Warranty
We are confident with the quality and reliability of our products and offer a Two-Year Limited Warranty for most Accu-Seal machines. For further details please contact the Accu-Seal sales department. Accu-Seal machines are designed and manufactured with pride in the USA.
• Pneumatic Jaw Pressure Control
• 10 second Adjustable Electronic Heat Timer
• 60 second Adjustable Electronic Cool timer
• Electronic Foot Switch Activator
• Tap to Start Foot Pedal
• Product Support Tray (may not be shown in picture)
• Include spare parts kit (Heating Element, PTFE Tape set, full instruction manual, air connection hose and 1/4″mnpt fitting).
• Seal Widths: 1/4” Standard.
• Actual Seal Length: 19.5”
– Power: 120 Vac, 7 Amps
– Air: 1.0 CFM @ 80 PSI
• Machine Size
– Length: 25.5”
– Width: 9.5”
– Height: 8.5”
Approximate Weight: 30lb
Shipping dims: 30″x18″x13″ 33lb
FACTORY ADD ON OPTIONS AVAILABLE
–Q-trim, 1/8” or Beaded Band Heat Element Types
–Portable Stand Mounted
–Other lengths available: 15″, 25″ & 30″
• Ergonomic Multi-Position Stand
• Portable Ultra-Quiet Lab/Office Compressor
